drylin® - 梯形导向螺母 - WFRM

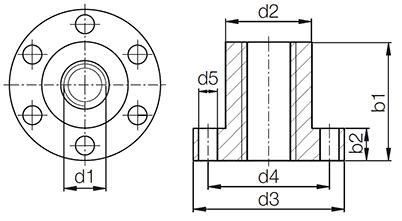

尺寸 [毫米]

订单号	iglidur® 材料	表面接触面积的比例[mm²]	d2	d3	d4	d5	b1	b2	螺纹 d1 x P	最大静载荷 F轴 [N]
JFRM-4546TR32X6	-	2095	45	-	-	-	46	16	-	-
A180FRM-4546TR32X6	-	2095	45	-	-	-	46	16	-	-
JFRM-2020TR8X1.5	-	205	20	36	28	4	20	8	TR08X1.5	911
JFRM-2525TR10X2	-	283	25	42	34	5	25	10	TR10X2	1131
JFRM-2525TR10X3	-	334	25	42	-	5	25	10	TR10X3	1335
JFRM-2835TR12X3	-	577	28	48	38	6	35	12	TR12X3	2309
JFRM-2835TR14X3	-	687	28	48	-	6	35	12	TR14X3	2749
JFRM-2835TR14X4	-	660	28	48	38	6	35	12	TR14X4	2639
JFRM-2835TR16X2	-	825	28	48	-	6	35	12	TR16X2	3299
JFRM-2835TR16X4	-	528	28	48	38	6	35	12	TR16X4	2111
JFRM-2835TR18X4	-	880	28	48	38	6	35	12	TR18X4	3519
JFRM-3244TR20X4	-	1244	32	55	45	7	44	12	TR20X4	4976
JFRM-3244TR24X5	-	1486	32	55	45	7	44	12	TR24X5	5944
JFRM-3846TR26X5	-	1698	38	62	50	7	46	14	TR26X5	6320
JFRM-3846TR28X5	-	1843	38	62	50	7	46	14	TR28X5	4560
JFRM-3846TR30X6⁽¹⁾	-	1951	38	62	50	7	46	14	TR30X6	3576
JFRM-4546TR30X6	-	1909	45	70	-	7	46	16	TR30X6	7634
JFRM-6770TR36X6	-	3629	67	95	81	7	70	25	TR36X6	14514
JFRM-6770TR40X7	-	4013	67	95	81	7	70	25	TR40X7	16054
WFRM-2020TR8X1.5	-	228	20	36	28	4	20	8	TR08X1.5	1139
WFRM-2525TR10X2	-	353	25	42	34	5	25	10	TR10X2	1767
WFRM-2525TR10X3	-	334	25	42	-	5	25	10	TR10X3	1669
WFRM-2835TR12X3	-	577	28	48	38	6	35	12	TR12X3	2886
WFRM-2835TR14X3	-	687	28	48	38	6	35	12	TR14X3	3436
WFRM-2835TR14X4	-	660	28	48	38	6	35	12	TR14X4	3299
WFRM-2835TR16X2	-	825	28	48	38	6	35	12	TR16X2	4123
WFRM-2835TR16X4	-	770	28	48	38	6	35	12	TR16X4	3848
WFRM-2835TR18X4	-	880	28	48	38	6	35	12	TR18X4	4398
WFRM-3244TR20X4	-	1244	32	55	45	7	44	12	TR20X4	6220
WFRM-3244TR24X5	-	1486	32	55	45	7	44	12	TR24X5	7430
WFRM-3846TR26X5	-	1698	38	62	50	7	46	14	TR26X5	6320
WFRM-3846TR28X5⁽¹⁾	-	1843	38	62	50	7	46	14	TR28X5	4560
WFRM-4546TR30X6	-	1951	45	70	58	7	46	16	-	0
WFRM-3846TR30X6⁽¹⁾	-	1951	38	62	50	7	46	14	TR30X6	3576
J350FRM-2020TR8X1.5	-	228	20	36	28	4	20	8	TR08X1.5	683
J350FRM-2525TR10X2	-	353	25	42	34	5	25	10	TR10X2	1060
J350FRM-2525TR10X3	-	334	25	42	34	5	25	10	TR10X3	1001
J350FRM-2835TR12X3	-	577	28	48	38	6	35	12	TR12X3	1732
J350FRM-2835TR14X3	-	687	28	48	38	6	35	12	TR14X3	2062
J350FRM-2835TR14X4	-	660	28	48	38	6	35	12	TR14X4	1979
J350FRM-2835TR16X2	-	825	28	48	-	6	35	12	TR16X2	2474
J350FRM-2835TR16X4	-	770	28	48	38	6	35	12	TR16X4	2309
J350FRM-2835TR18X4	-	880	28	48	38	6	35	12	TR18X4	2639
J350FRM-3244TR20X4	-	1244	32	55	45	7	44	12	TR20X4	3732
J350FRM-3244TR24X5	-	1486	32	55	45	7	44	12	TR24X5	4458
RFRM-2020TR8X1.5	-	228	20	36	28	4	8	20	TR08X1.5	456
RFRM-2525TR10X2	-	353	25	42	34	5	25	10	TR10X2	707
RFRM-2525TR10X3	-	334	25	42	34	5	25	10	TR10X3	668
RFRM-2835TR12X3	-	577	28	48	38	6	35	12	TR12X3	1155
RFRM-2835TR14X3	-	687	28	48	38	6	35	12	TR14X3	1374
RFRM-2835TR14X4	-	660	28	48	38	6	35	12	TR14X4	1319
RFRM-2835TR16X2	-	825	28	48	38	6	35	12	TR16X2	1649
RFRM-2835TR16X4	-	770	28	48	38	6	35	12	TR16X4	1539
RFRM-2835TR18X4	-	880	28	48	38	6	35	12	TR18X4	1759
RFRM-3244TR20X4	-	1244	32	55	45	7	44	12	TR20X4	2488
RFRM-3244TR24X5	-	1486	32	55	45	7	44	12	TR24X5	2972
A180FRM-2020TR8X1.5	-	228	20	36	28	4	20	8	TR08X1.5	797
A180FRM-2525TR10X2	-	353	25	42	34	5	25	10	TR10X2	1237
A180FRM-2525TR10X3	-	334	25	42	34	5	25	10	TR10X3	1168
A180FRM-2835TR12X3	-	577	28	48	38	6	35	12	TR12X3	2020
A180FRM-2835TR16X2	-	825	28	48	38	6	35	12	TR16X2	2886
A180FRM-2835TR16X4	-	770	28	48	38	6	35	12	TR16X4	2694
A180FRM-2835TR18X4	-	880	28	48	38	6	35	12	TR18X4	3079
A180FRM-3244TR20X4	-	1244	32	55	45	7	44	12	TR20X4	4354
A180FRM-3244TR24X5	-	1486	32	55	45	7	44	12	TR24X5	5201
A180FRM-3846TR26X5	-	1698	38	62	50	7	46	14	TR26X5	6320
A180FRM-3846TR28X5	-	1843	38	62	50	7	46	14	TR28X5	4560
A180FRM-3846TR30X6	-	1951	38	62	50	7	46	14	TR30X6	3576
A180FRM-4546TR30X6	-	1951	45	70	58	7	46	16	TR30X6	0

(1) 因螺母几何结构而减少的轴向负载
