无铅——符合(RoHS) 2002/95/EG标准
Standards and Certificates
无铅——符合(RoHS) 2002/95/EG标准
订单号 |
表面接触面积 的比例[mm²] |

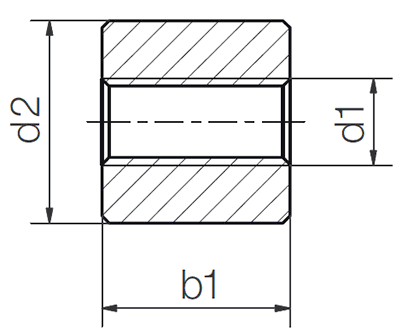

d2 | b1 |
螺纹 d1 x P |
最大静载荷 F轴 [N] |
---|---|---|---|---|---|
WSLM-2215TR10X2 | 212 | 22 | 15 | TR10X2 | 1060 |
WSLM-2215TR10X3 | 200 | 22 | 15 | TR10X3 | 1001 |
WSLM-2618TR12X3 | 297 | 26 | 18 | TR12X3 | 1484 |
WSLM-3624TR16X2 | 565 | 36 | 24 | TR16X2 | 2827 |
WSLM-3024TR16X4 | 528 | 30 | 24 | TR16X4 | 2639 |
WSLM-3624TR16X4 | 528 | 36 | 24 | TR16X4 | 2639 |
WSLM-3027TR18X4 | 679 | 30 | 27 | TR18X4 | 2362 |
WSLM-4027TR18X4 | 679 | 40 | 27 | TR18X4 | 3393 |
WSLM-3025TR20X4 | 707 | 30 | 25 | TR20X4 | 3534 |
订单号 |
表面接触面积 的比例[mm²] |
d2 | b1 |
螺纹 d1 x P |
最大静载荷 F轴 [N] |
---|---|---|---|---|---|
WSLM-2220TR10X2 | 283 | 22 | 20 | TR10X2 | 1414 |
WSLM-2220TR10X3 | 267 | 22 | 20 | TR10X3 | 1335 |
WSLM-2624TR12X3 | 396 | 26 | 24 | TR12X3 | 1979 |
WSLM-3028TR14X4 | 528 | 30 | 28 | TR14X4 | 2639 |
WSLM-3021TR14X4 | 396 | 30 | 21 | TR14X4 | 1979 |
WSLM-3632TR16X2 | 754 | 36 | 32 | TR16X2 | 3770 |
WSLM-3632TR16X4 | 704 | 36 | 32 | TR16X4 | 3519 |
WSLM-4036TR18X4 | 905 | 40 | 36 | TR18X4 | 4524 |
订单号 |
表面接触面积 的比例[mm²] |
d2 | b1 |
螺纹 d1 x P |
最大静载荷 F轴 [N] |
---|---|---|---|---|---|
WSLM-3025TR20X4 | 707 | 30 | 25 | TR20X4 | 3534 |
WSLM-5036TR24X5 | 1216 | 50 | 36 | - | 6079 |
JSLM-3028TR14X3 | 550 | 30 | 28 | - | 2199 |
JSLM-1418TR8X1.5 | 205 | 14 | 18 | TR08X1.5 | 500 |
JSLM-1812TR8X1.5 | 137 | 18 | 12 | TR08X1.5 | 547 |
JSLM-2215TR10X2 | 212 | 22 | 15 | TR10X2 | 848 |
JSLM-2215TR10X3 | 200 | 22 | 15 | TR10X3 | 801 |
JSLM-2220TR10X2 | 283 | 22 | 20 | TR10X2 | 1131 |
JSLM-2220TR10X3 | 267 | 22 | 20 | TR10X3 | 1068 |
JSLM-2618TR12X3 | 297 | 26 | 18 | TR12X3 | 1188 |
JSLM-2624TR12X3 | 396 | 26 | 24 | TR12X3 | 1583 |
JSLM-3021TR14X4 | 396 | 30 | 21 | TR14X4 | 1583 |
JSLM-3024TR16X4 | 528 | 30 | 24 | TR16X4 | 2111 |
JSLM-3025TR20X4 | 707 | 30 | 25 | TR20X4 | 2060 |
JSLM-3027TR18X4 | 679 | 30 | 27 | TR18X4 | 2362 |
JSLM-3028TR14X4 | 528 | 30 | 28 | TR14X4 | 2111 |
JSLM-3624TR16X2 | 565 | 36 | 24 | TR16X2 | 2262 |
JSLM-3624TR16X4 | 528 | 36 | 24 | TR16X4 | 2111 |
JSLM-3632TR16X2 | 754 | 36 | 32 | TR16X2 | 3016 |
JSLM-3632TR16X4 | 704 | 36 | 32 | TR16X4 | 2815 |
JSLM-4027TR18X4 | 679 | 40 | 27 | TR18X4 | 2714 |
JSLM-4036TR18X4 | 905 | 40 | 36 | TR18X4 | 3619 |
JSLM-4530TR20X4 | 848 | 45 | 30 | TR20X4 | 3393 |
JSLM-4540TR20X4 | 1131 | 45 | 40 | TR20X4 | 4524 |
JSLM-5036TR24X5 | 1621 | 50 | 36 | TR24X5 | 6484 |
JSLM-5039TR26X5 | 1698 | 50 | 39 | TR26X5 | 6320 |
JSLM-5048TR24X5 | 1621 | 50 | 48 | TR24X5 | 6484 |
JSLM-5052TR26X5 | 1920 | 50 | 52 | TR26X5 | 7678 |
JSLM-6042TR28X5 | 1682 | 60 | 40 | TR28X5 | 6729 |
JSLM-6045TR30X6 | 1909 | 60 | 45 | TR30X6 | 7634 |
JSLM-6056TR28X5 | 2243 | 60 | 56 | TR28X5 | 8972 |
JSLM-6060TR30X6 | 2545 | 60 | 60 | TR30X6 | 10179 |
JSLM-6060TR32X6 | 2730 | 60 | 60 | - | 10920 |
JSLM-7572TR36X6 | 3732 | 75 | 72 | TR36X6 | 14929 |
JSLM-7680TR40X7 | 4587 | 76 | 80 | TR40X7 | 18347 |
JSLM-90100TR50X8 | 7226 | 90 | 100 | TR50X8 | 28903 |
易格斯提供的梯形导向螺母选型范围非常广范
